58751 NEW “N” Scale ESU 58751 LokSound 5 Micro Direct Atlas Legacy DCC Sound Decoder – N Scale

If you need the sound file programmed to the decoder Yankeedabbler will load the sound file for you at no additional cost, if you add the sound file number or locomotive type (ie GP38) in the “add order note” of your order. The “Add order Note” is located in the lower left corner of your cart. If nothing is in the add order note the decoder will be sent out directly to you and you will need to program the decoder.

You can see the ESU Sound Library by clicking the link (North American and AUS Files: https://projects.esu.eu/projectoverviews/18). The link is for the North American and AUS sound files but we can load any ESU sound file to the decoder just tell us the ESU sound file number or the type of locomotive.

Or you can purchase a LokProgrammer from us (stock number 53452). However, it is not necessarily required as decoders can be purchased with sound files preloaded and CV Changes can be done using control systems.

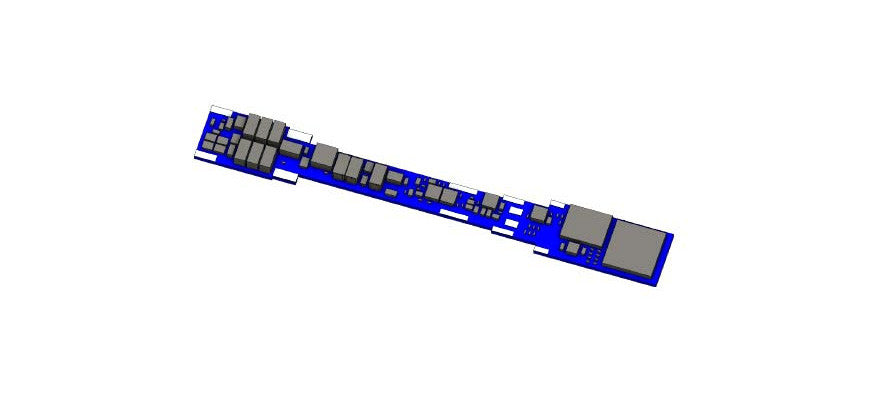

The LokSound 5 micro DCC Direct has been specially developed for installation in N gauge locomotives of the Atlas and Intermountain brands: it can be inserted directly instead of the analog board installed there as standard. However, the decoder can also be used for similar models from other manufacturers at your own discretion.

The LokSound 5 micro DCC Atlas Legacy is also a “direct style decoder developed for early (before 2016) Atlas, Intermountain (and others). The decoder was made for locos produced before sound was added during production. This replaces the popular ESU 73100 Select Direct Micro.

Both the LokSound 5 micro DCC Direct/Atlas Legacy with their dimensions of 66.0mm x 8.2mm are pure DCC decoders and come without a loudspeaker.

Modes

The LokSound 5 micro DCC Direct/Atlas Legacy are both “pure-bred” DCC decoders. 14 to 128 driving steps are as self-evident as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders log in fully automatically to a suitable digital center. It masters all DCC programming modes and thanks to RailCom® the CV values can be read out on the main track with suitable control panels. Auxiliary registers exist for control panels that can only program the CVs from 1-255.

The LokSound 5 micro DCC Direct/Atlas Legacy Decoders detect the Märklin® brake distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or dc voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An AUTOMATIC ABC commuter train allows automatic commuting between two stations.

The LokSound 5 micro DCC Direct/Atlas Legacy decoders can be used on analog DC layouts.

The decoders switch “on-the-fly” fully automatically between operating modes. Most of the time, nothing needs to be adjusted.

Sound

The LokSound 5 micro DCC Direct/Atlas Legacy decoders can play up to 12 channels simultaneously. Each channel can be resolved with up to 16 bits / 31250 kHz and offers hi-fi quality on your system. There is virtually no difference to the original audible anymore. A Class-D audio output stage with up to 3W output power controls the speakers, which have between 4 ohms and 32 ohms impedance. A 128 Mbit sound memory provides enough capacity. All innavidual noises can be adjusted innavidually in the volume. The super-flexible sound engine without a rigid schedule allows the exemplary simulation of all conceivable rail tracks.

Functions

The LokSound 5 micro DCC Direct/Atlas Legacy decoders have up to 10 directly soldered LEDs. Two of them are intended for front and rear head lighting, two more are connected to the aux3 and aux4 outputs to switch e.g. number boards. A further 6 LEDs on the bottom are intended for ditch lights, but can also be used for other lighting purposes on request. All important lighting functions are available. The brightness of each output can be set separately.

Motor Control

The motor control of the LokSound 5 micro DCC Direct/Atlas Legacy decoders have a variable PWM clock frequency from 10kHz to 50kHz, which ensures super-quiet operation, especially for bell anchor motors – the hitherto typical “hum” is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique “Autotune” function allows the decoder to be automatically measured against the motor. The LokSound 5 micro DCC Direct/Atlas Legacy decoders deliver up to 0.9A motor power.

Protection

Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible.
