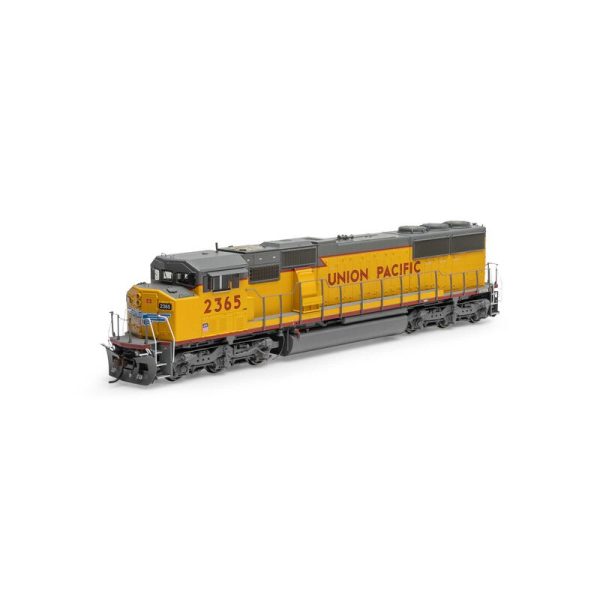

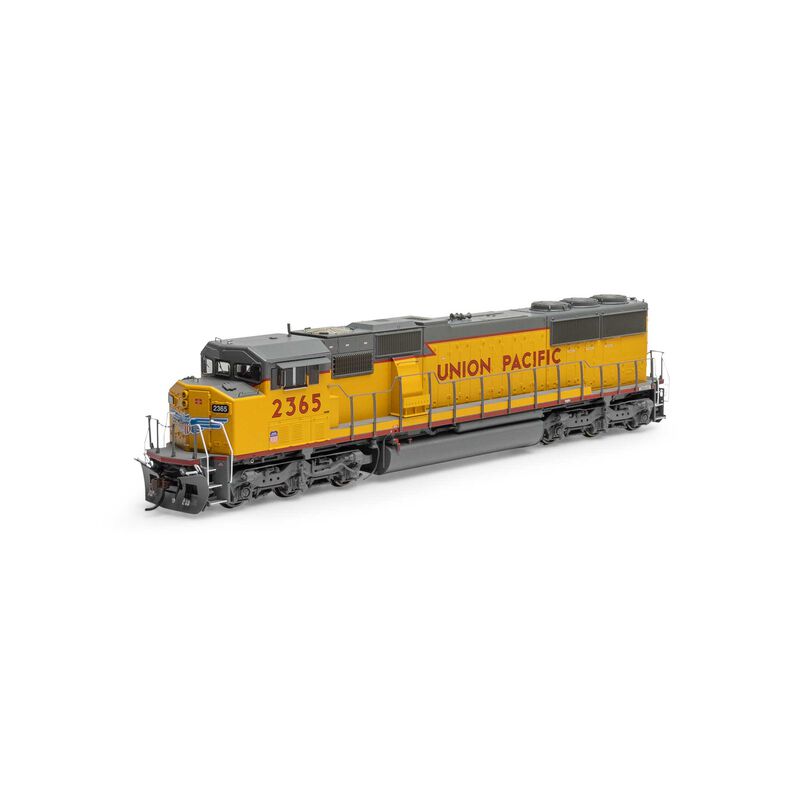

Name: Athearn ATHG75634 SD60M Tri-Clops, UP Union Pacific #2365 with DCC &amp; Sound HO Scale Cheap Brand New Unisex
SKU: 6s2tqe6
Availability: InStock

Athearn Genesis ATHG75634 SD60M Tri-Clops, UP Union Pacific #2365 with DCC & Sound HO Scale

UP FEATURES:

Late red sill era
Front illuminated number boards
Front ditch lights
Road number specific details
4 different paint variations to choose from!

To make room for the onslaught of arriving new motive power, UP renumbered (and in some cases repainted) their aging fleet of SD60M’s. Retaining the red stripe sill, these units operated into the mid 2000’s before the full adaptation of adding the yellow stripes. Some fully repainted UP units were updated with UP’s “Lightning Stripe” scheme with wings on the nose. We are offering 4 different paint variations including a faded Prime for Grime version to add some variety to your fleet!

ROAD NUMBER SPECIFIC FEATURES:

#2257

Faded colors with patched numbers
large UP style front plow
firecracker antenna

#2285

Low lightning stripe repaint with UP wings
large UP style plow
firecracker antenna

#2365

High lightning stripe repaint with UP wings
large EMD style plow
firecracker antenna

#2367

Standard UP repaint with small UP shield
large EMD style plow
firecracker antenna

SD60M “TRI-CLOPS” SERIES LOCOMOTIVE FEATURES:

Coupler cut levers
Flexible Trainline and MU hoses
MU stands
Walkway tread
Windshield wipers
Lift rings
Wire grab irons
Sanding lines
Lit number boards
Lit class lights, if equipped
Lit signal lights and/or beacons, if equipped
Bell placement & type per prototype
Detailed fuel tank with fuel fillers, fuel gauges, and breather pipes
EMD HTC trucks with animated bearing caps
Speed recorder unless noted
See-through cab windows and full cab interior
Fine-scale Celcon handrails for scale appearance
McHenry® scale knuckle couplers – Kadee® compatible
DCC-ready features Quick Plug™ plug-and-play technology with 21-pin NEM connector
Scaled from prototype resources including drawings, field measurements, photographs, and more
Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
All-wheel drive with precision gears for smooth & quiet operation
All-wheel electrical pickup provides reliable current flow
Wheels with RP25 contours operate on all popular brands of track
LED Lighting for realistic appearance
Heavy die-cast frame for greater traction and more pulling power
Accurately painted and printed paint schemes
Packaging securely holds for the model for safe storage
Minimum radius: 18” Recommended radius 22”

PRIMED FOR GRIME MODELS FEATURE

Duplicated look and feel of “In Service” equipment
Faded base colors matched to the prototype
Perfect starting point for adding grime and rust

SOUND-EQUIPPED MODELS ALSO FEATURE

Onboard DCC decoder with SoundTraxx Tsunami2 sound
Dual cube speakers for optimal sound quality
Sound units operate in both DC and DCC
Full DCC functions available when operated in DCC mode
Engine, horn, and bell sounds work in DC
All functions NMRA compatible in DCC mode
Precision slow speed control
Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
Many functions can be altered via Configuration Value (CV) changes
CV chart included in the box

PROTOTYPE SPECIFIC INFORMATION

In 1984, EMD unveiled the first four SD60 demonstrator locomotives. The SD60 was equipped with a 3,800 horsepower, 16 cylinder, turbocharged 710G3A prime mover. Five years later, EMD began offering the SD60 with the wide nose “safety” cab with the infamous “Tri-Clops” 3-piece windshield, thus creating the SD60M. The term “Tri-clops” is a popular railfan nickname that refers to the original 3-window cab design.

Union Pacific was the first road to order these new SD60M locomotives followed by Burlington Northern and SOO Line. BN’s SD60M locomotives went on to the merged BNSF while the SOO Line units went to Canadian Pacific. Some of the BNSF units found more mileage with Norfolk Southern and in lease service for CEFX.
